Copying

This section describes how to load originals and copy them to plain paper loaded in the cassette.

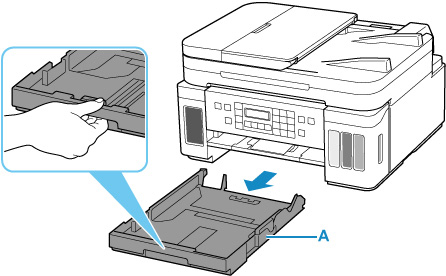

1. Pull out the cassette (A) from the printer.

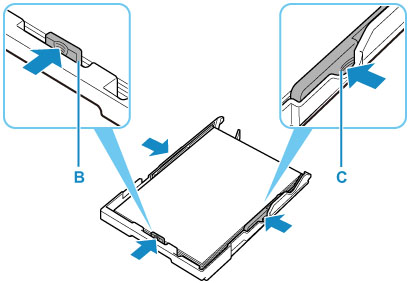

2. Slide paper guides (B) in front and (C) on right to open guides.

3. Load plain paper in portrait orientation WITH PRINT SIDE FACING DOWN.



4. Align paper guides (B) in front and (C) on right with paper length and width.



5. Insert cassette into printer.



   After inserting the cassette into the printer, the paper information registration screen for the cassette appears on the LCD.

6. Press the OK button.



7. Use the button to select the size of the loaded paper in the cassette, then press the OK button.



   Note

   • The (asterisk) on the LCD indicates the current setting.

8. Check media type and press OK button.



   Follow the instructions of any messages displayed to register the paper information.

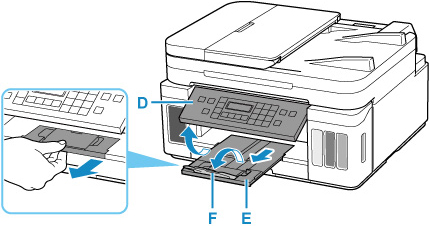

9. Open operation panel (D), pull out paper output tray (E), and then open output tray extension (F).

   Be sure to open the operation panel before printing. If the operation panel is close, the printer does not start printing.

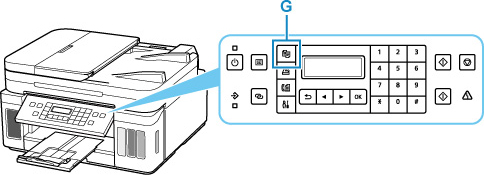

10. Press the COPY button (G).

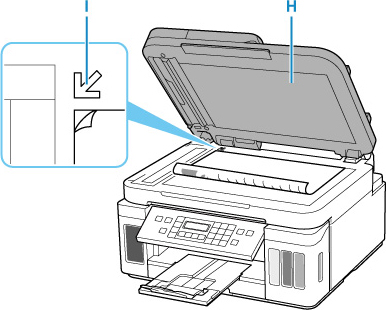

11. Open document cover (H).

12. Load original WITH SIDE TO COPY FACING DOWN and align it with alignment mark (I).



    Note

    • To copy two or more documents continuously, load them in the ADF (Auto Document Feeder).


      • Loading Documents in the ADF (Auto Document Feeder)

13. Close the document cover gently.

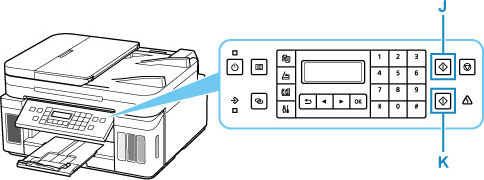

14. Check paper settings and press Black button (J) or Color button (K).



Important

• Do not open the document cover until copying is complete.

Note

• Your printer is equipped with many other convenient copy features.

  • Copying
